LED Light System

LED lights are replacing the traditional metal halide lamps as they offer a range of benefits, including lower energy consumption, higher efficiency, the ability to dim and adjust the color of the light, and longer service life, thus less need for maintenance. Our lights are tested and designed for submerged operation.

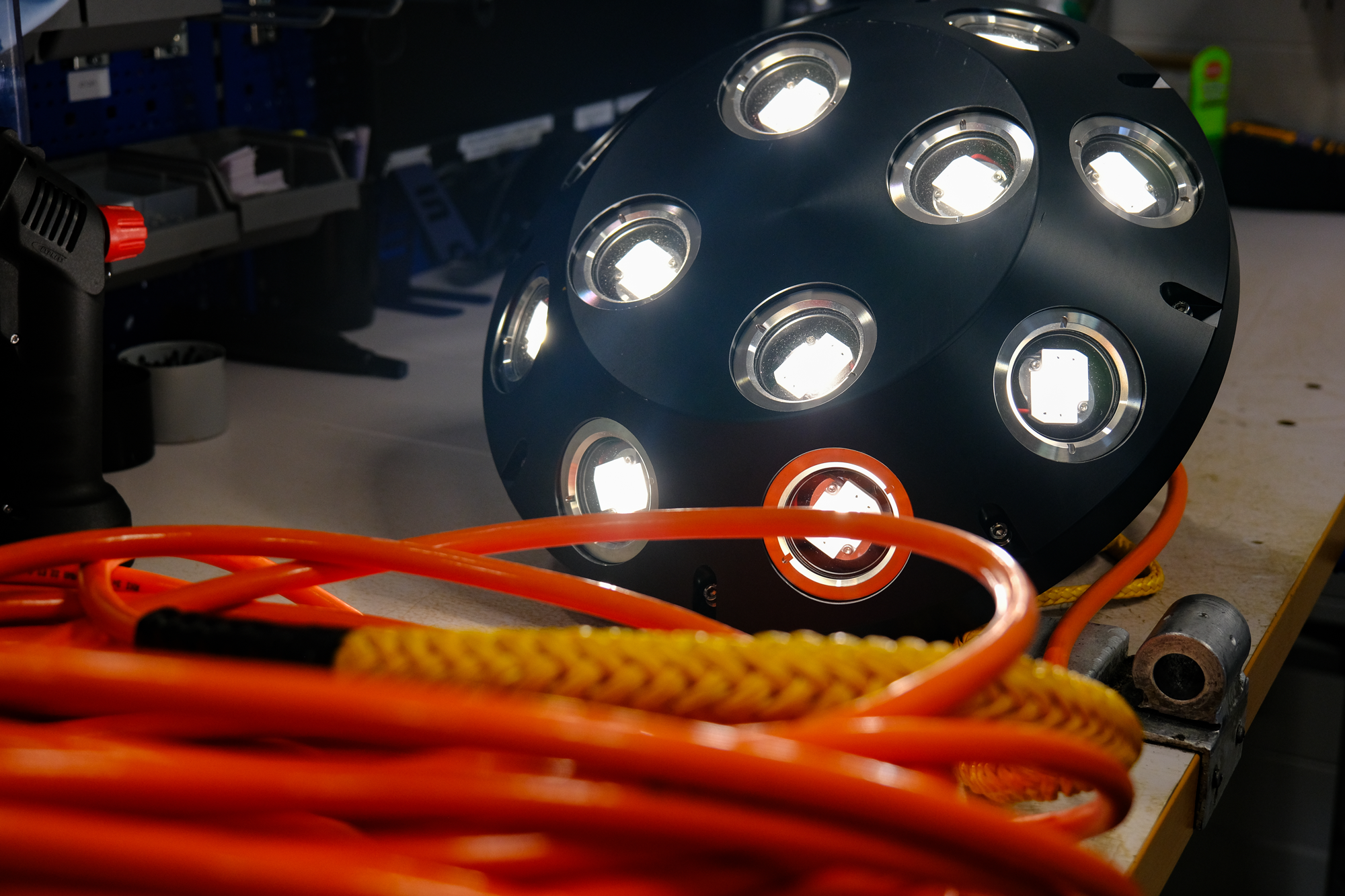

orbit light

Product Details

Luminous flux

46 800 lm

Voltage

100 to 250 VAC, 50/60 Hz

Dispersion angle

180° facing down

Minimum life expectancy of LED

50 000 hours (L70)

LED options

White or green

Maximum active light period

24/7

Depth

85m

Cable length

50m or 70m

Weight

14,5 kg (in air)

Material

POM, aluminum, glass

Number of lights per cabinet

1–8

CRI

90

Its design is designed in a robust construction. An optimal level of automation provides effective control of parameters for use, also allowing the individual control of intensity regulation of the lights. The automated control system allows multiple setups, and everything can be controlled from the office.

Advantages

The new Orbit LED offers all the benefits of the LED, and several unique features:

  • Optimal spectral composition
  • Optimal and unique light dispersion downwards where the fish are located; No light is wasted to the atmosphere.
  • A robust construction to withstand the harsh sea conditions
  • Dimming
  • Easy to install
  • Dedicated user-friendly control software
  • We only use LED diodes which are as close as possible to real sunlight
  • Slow start in the event of a power cut to avoid scaring the fish

Software

The software offers both automatic, manual and user-programmable control options. The manual mode works like a light switch, while the user-programmable option lets the user create their desired light schedules to support the fish on the site in a customized and optimal way, or for different scenarios. The lights communicate wirelessly between the tanks and the office / observation rooms.

orbitlight isolert

The most natural light possible

The color rendering index (CRI) tells how naturally the colors of an object are reproduced when illuminated by a specific light source. This makes color rendering a quality characteristic of a light source. A CRI of Ra 100 means a 100% natural reproduction of colors. The vast majority of underwater lights have a CRI of 70 or lower. Orbit LED only uses LED diodes of the highest quality to give the fish the most natural light possible – because we know it works.

Submerged operation

Orbit LED has recently come in an updated version specially designed for great depths and submerged operation. This places great demands on the robustness of the equipment, both due to the depth, but also the light’s function by avoiding flickering or a quiet start in the event of a power cut. All Orbit LED lights are programmed with a 30 second slow start to avoid scaring the fish, but this is adjustable and can be changed to whatever you want.
